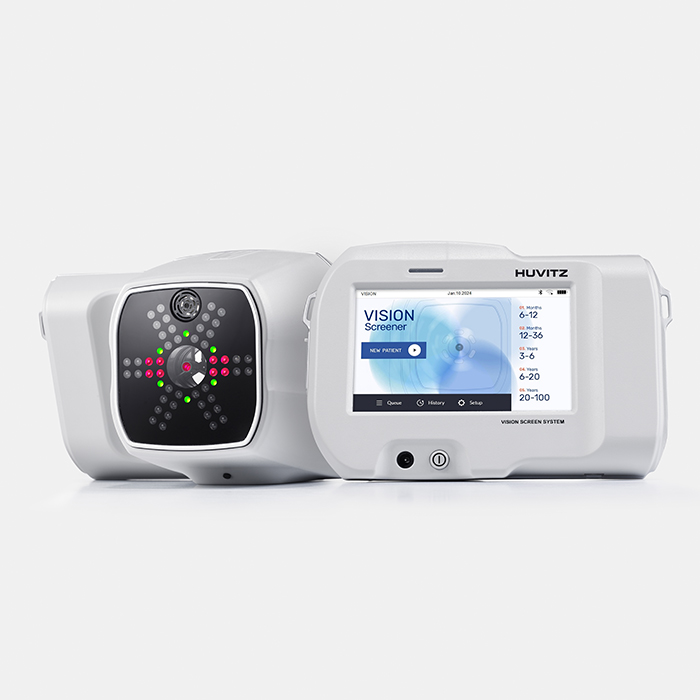

Rapid Vision Screening for Infants and Toddlers, in Less Than a Second! More Accurate with Higher Light Intensity!
Our device can quickly and accurately measure individuals from infants over six months of age, who do not like to sit in front of a desktop autorefractometer, or to adults with limited mobility. It assesses refractive errors within a second from a distance of 1 meter, making it useful for detecting risks of amblyopia, such as myopia, hyperopia, astigmatism, and strabismus.
Especially for infants and toddlers, where the easy and early diagnosis is crucial for eye development, our patented Focus LED technology measures more precisely with higher light intensity.
Experience easy and convenient testing with Huvitz’s Vision Screener.
Quick and Comfortable Measurement:
Non-contact measuring in one go
Measures refractive abnormalities like myopia, astigmatism, hyperopia, and strabismus within a second from 1 meter, similar to taking a photo. Infants who cannot sit alone can be measured while held by a guardian, and elderly with mobility issues can be measured comfortably without moving.

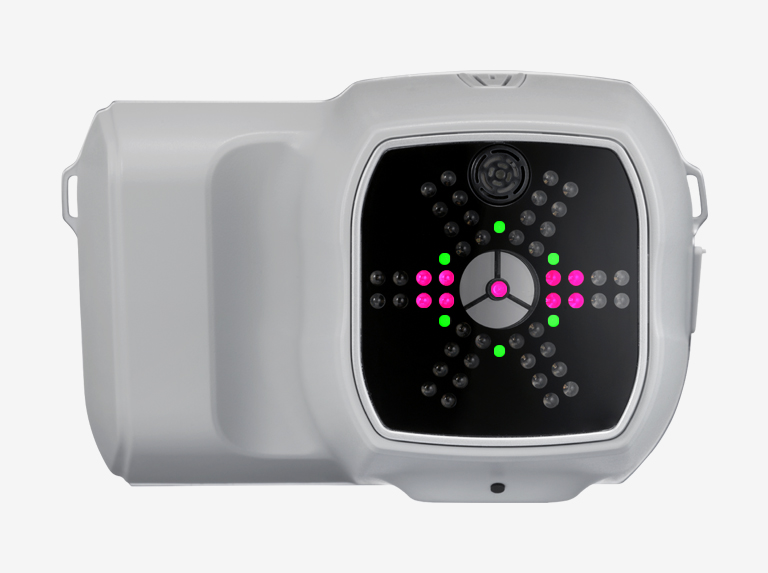

Child-friendly measurement method

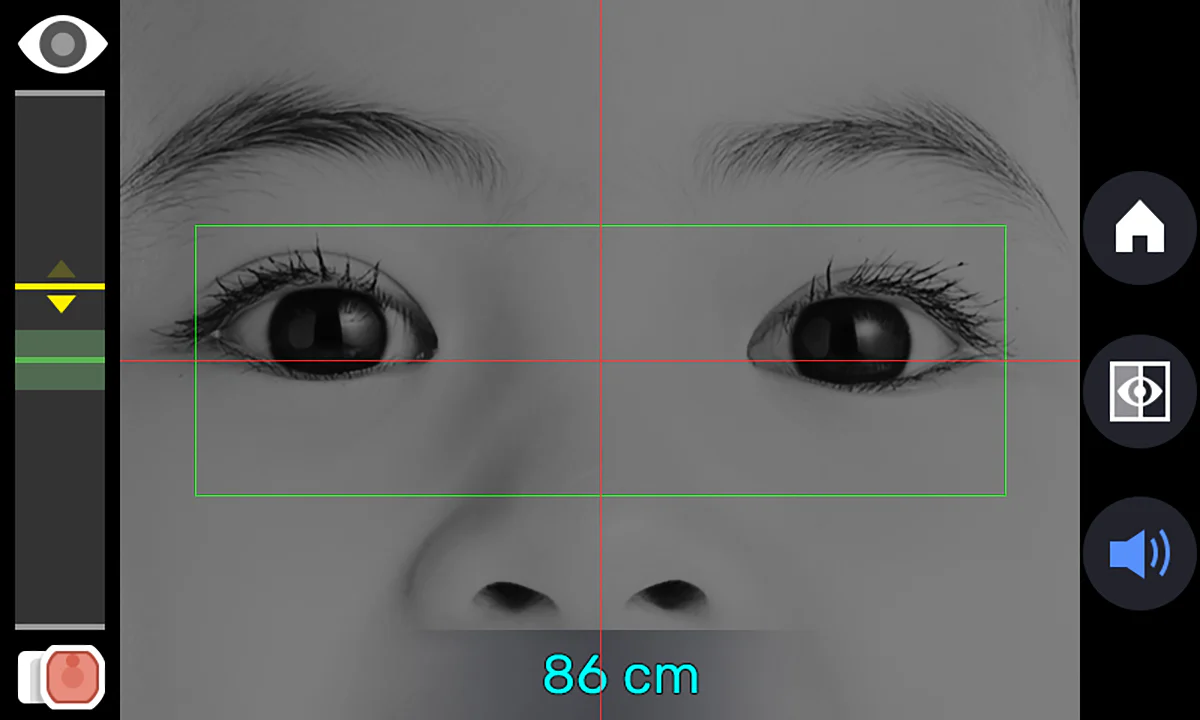

Attracts the child’s gaze and interest with light and sound to focus on the center of the vision screener
Minimized shaking during measurement
A global camera sensor helps to minimize shaking during the quick measurement process.
Reliable Test Results

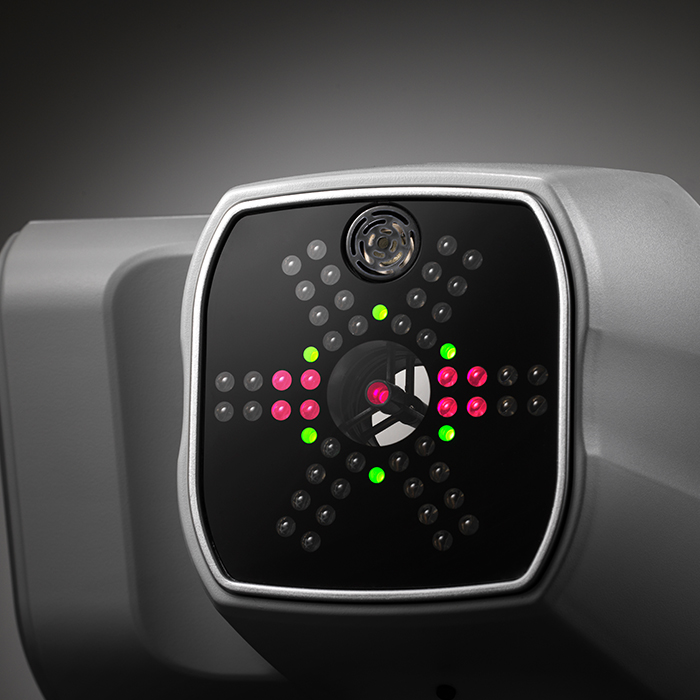

Accurate measurement with Focus LED technology
Measures the eyes precisely and in detail, minimizing the influence of external light using patented Focus LED technology with increased LED intensity.
*Use in a dark place is recommended for even higher data accuracy.
Enhanced measurement precision
High-resolution camera and advanced optometric
measurement algorithms using a quad-core CPU
provide more precise optometric data.

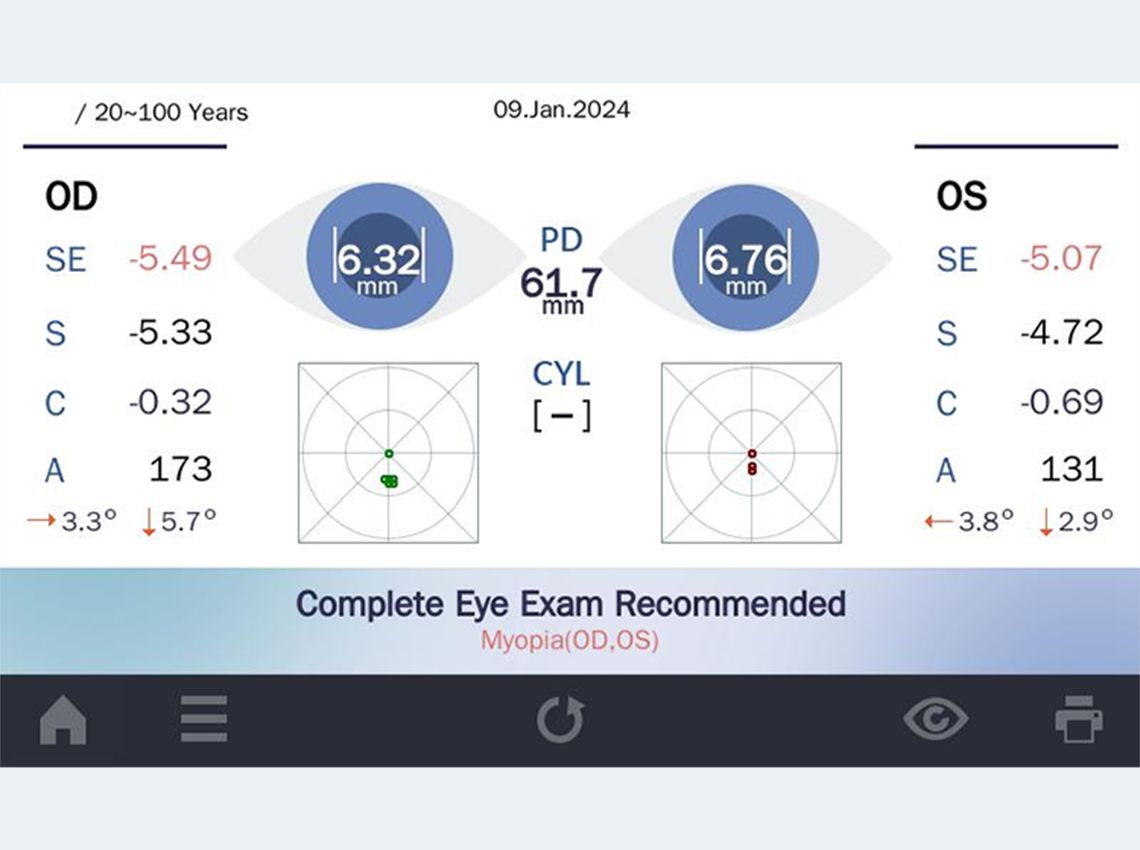

Trustworthy analysis results
Offers reliable analysis by evaluating the reflection of
light from the retina, identifying refractive and ocular
alignment abnormalities.
User-Centered Convenience

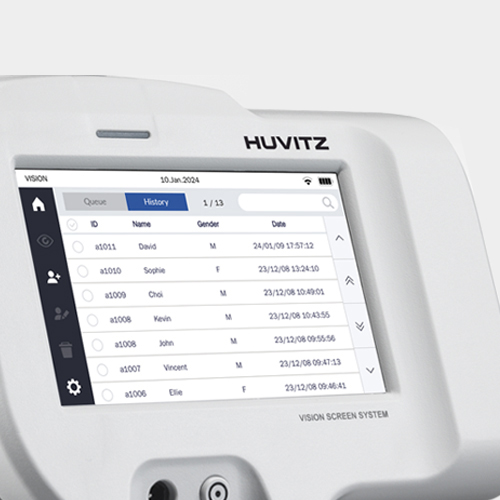

Clear, wide-angle IPS monitor
Bright screen and wide viewing angle of the IPS monitor panel allow users to see data clearly from any angle.

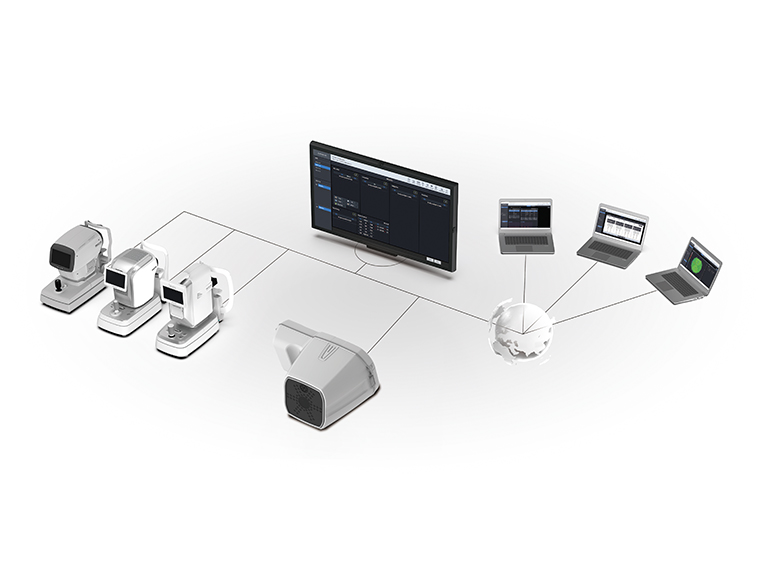

Easy connectivity with various devices
Not only easily compatible with the standard DICOM format but also allows checking measured data on a PC through the self-developed software, HIIS-1
Screening report provision and convenient
printing method
Report information can be printed conveniently without cables using the optional Bluetooth printer.
Various data transmission methods and
fast search and management
A database of up to 7,000 individuals can be quickly
accessed and searched by page, and bulk data
transfer to a computer is possible via various methods
(USB/cable/WIFI).
Specifications
| Spherical | ||
| Range | -8.0D to +8.0D | |
| Increment step | 0.01D, 0.25D | |
| Accuracy | -3.50D to +3.50D | ± 0.5D |
| -8.0D to < -3.50D | ± 1.0D | |
| > +3.50D to +8.0D | ± 1.0D | |
| Cylindrical | ||
| Range | -3.0D to +3.0D | |
| Increment step | 0.01D, 0.25D | |
| Accuracy | -1.50D to +1.50D | ± 0.5D |
| -3.00D to < -1.50D | ± 1.0D | |
| > +1.50D to +3.00D | ± 1.0D | |
| Axis | ||
| Range | 0 – 180° | |
| Increment step | 1° | |
| Accuracy | ± 10° | For CYL’s values > 0.50D |
| Pupil size | |
| Range | 4.0 – 9.0mm |
| Increment step | 0.1mm |
| Accuracy | ± 0.4mm |
| Pupil distance | |
| Range | 35 – 80mm |
| Increment step | 1mm |
| Accuracy | ± 1.5mm |
| Measurement time | Average | ≤ 1s |
| Measuring distance | Range | 100cm± 5cm |
| Power Supply | DC 15V, 2.0A / Output Rating : 15Vdc, 2.0A | |
| Dimensions / Weight | 192(W) x 153(D) x 1260(H) mm / 1 kg | |
| LCD | IPS 800X480 | |
| Printer | BIXOLON Bluetooth Thermal printer(Optional) | |
| Fixation target | visual pattern / audible sound | |
| wireless network | 802.11 b/g/n | |
| interface | USB 2.0 | |
Specification and design are subject to change without notice.
