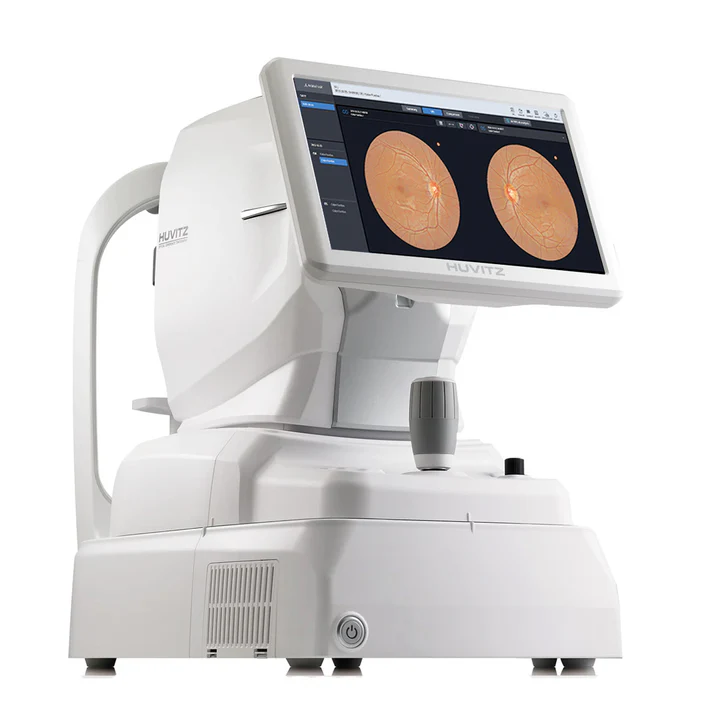

HFC-1
Non-Mydriatic Fundus Camera
PC-integrated fundus camera with high-resolution retinal imaging and fast image analysis
1. High resolution and performance color camera

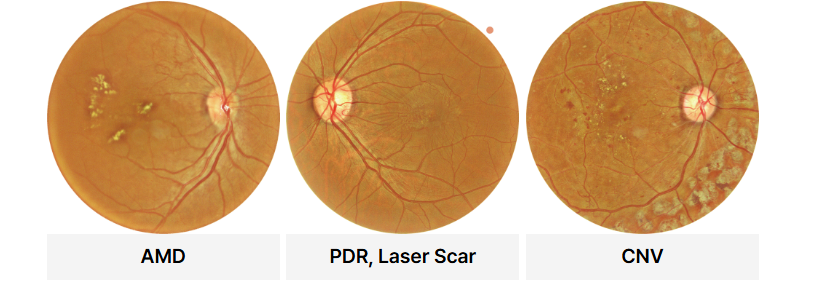

HFC-1 is equipped with a high-performance camera that captures high-resolution images, providing comprehensive overviews and detailed zoom-ins. It facilitates visualization, analysis, and diagnosis through various imaging modes.

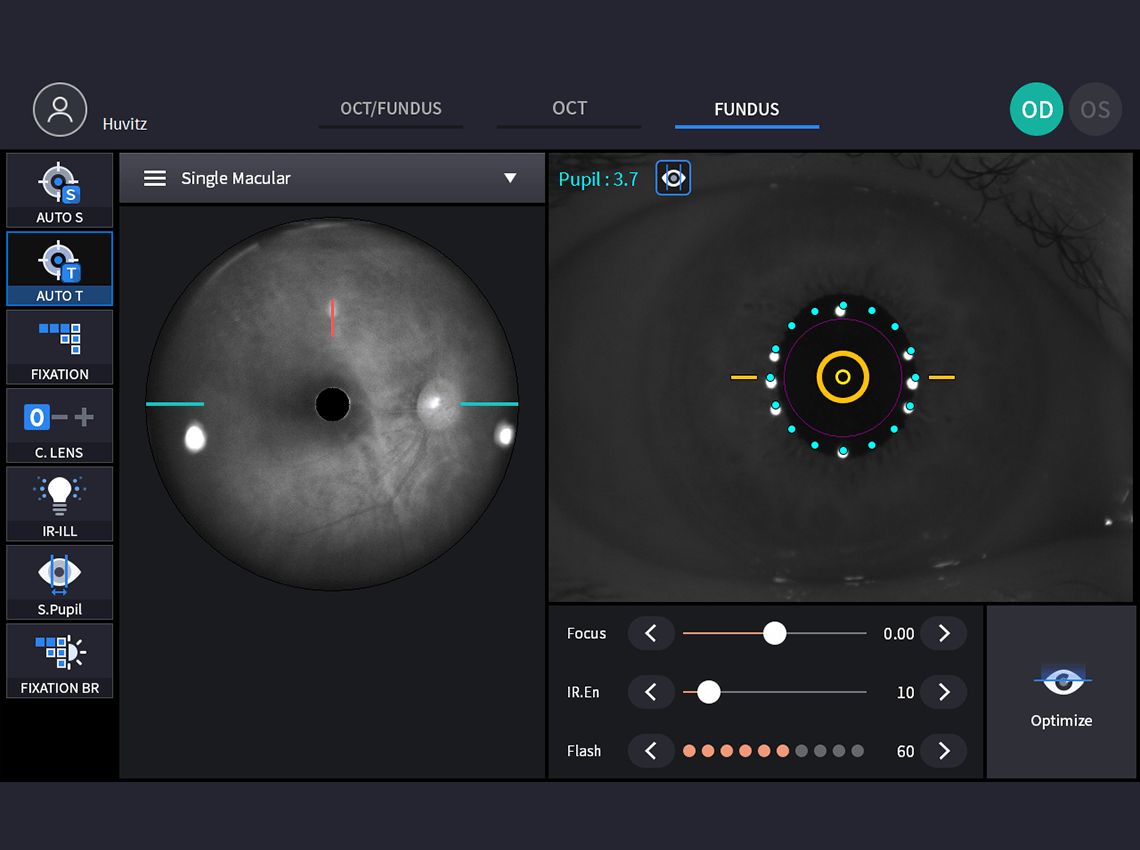

2. Auto-Detection of pupil size and auto flash level function
HFC-1 features quick and stable auto-tracking and shooting with precise auto-detection technology. It automatically adjusts flash levels and does not require mode changes for measuring small pupils.
3. Fixation target for flexible configuration
By adjusting the fixation target’s position on the display, users can acquire the highest quality images.
4. Panorama function for wide range of peripherals
HFC-1 automatically stitches together fundus images taken from different positions to create an optimal total overview. This function provides essential information for general eye evaluations, enabling users to acquire high-resolution images with minimal distortion.
Specifications
| Technical Specifications | |
| Type | Non-mydriatic fundus camera |
| Resolution | Center: 60 lines/mm or more Middle (r/2): 40 lines/mm or more Peripherally: 25 lines/mm or more |
| Angle of view | 45° |
| Camera | Color Image Sensor |
| Minimum pupil diameter | 4.0mm (Normal mode), 3.3mm (Small pupil mode) |
| Flash light | White light |
| Working distance | 33mm |
| Dioptric compensation for patient’s eye | -33D ~ +33D total -33D ~ -7D with minus compensation lens -13D ~ +13D with no compensation lens +7D ~ +33D with plus compensation lens X, Y for positioning, Z for working distance |
| Auto tracking | X, Y for positioning, Z for working distance |
| Hardware Specification | |

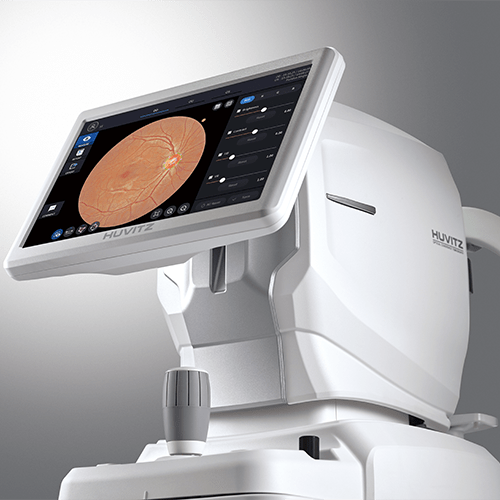

| Display | 12.1 inch, 1280×800 pixel, Touch panel color LCD |
| Internal fixation target | LCD (internal), White LED (external) |
| Power supply | AC 100~240V, 50/60Hz, 1.6~0.7A |
| PC | Built-in computer |
| LCD Tilting angle | 70˚ |
| Dimensions | 330(W) x 542(D) x 521(H)mm |
| Mass | 28kg |
| Measurement Range | |
| Horizontal movement | 70mm (back and forth), 100mm (left and right) |
| Vertical movement | 30mm |
| Chinrest movement | 62mm (up and down), motorized |
